A&D Medical Finger Pulse Oximeter Blue, SpO2 Oxygen Saturation And Pulse Rate Monitor For Adults And Children

Description

A&D Medical Finger Pulse Oximeter Blue, SpO2 Oxygen Saturation And Pulse Rate Monitor For Adults And Children

• SpO2 and pulse monitoring: Measures blood oxygen saturation (SpO2) and pulse rate using a non-invasive fingertip measurement method.
• Medical-grade design: CE-approved Class IIa medical device according to the supplied product information, designed for reliable monitoring.
• Simple one-button operation: Place a finger into the sensor and press the button to obtain readings on the digital LCD display.
• Portable and practical: Compact finger-clip design with carrying case, lanyards and two AAA batteries supplied for convenient home and portable use.

The A&D Medical UP-200 Finger Pulse Oximeter is a compact, non-invasive device designed to measure blood oxygen saturation (SpO2) and pulse rate through the fingertip. Its simple operation and clear digital display make it suitable for routine oxygen saturation monitoring in home and healthcare settings.

The UP-200 uses optical pulse oximetry technology to estimate arterial haemoglobin oxygen saturation and measure pulse rate. The fingertip sensor uses red and infrared light to detect changes associated with blood flow and oxygenated haemoglobin. The supplied specifications identify a 660 nm red-light source and 905 nm infrared source.

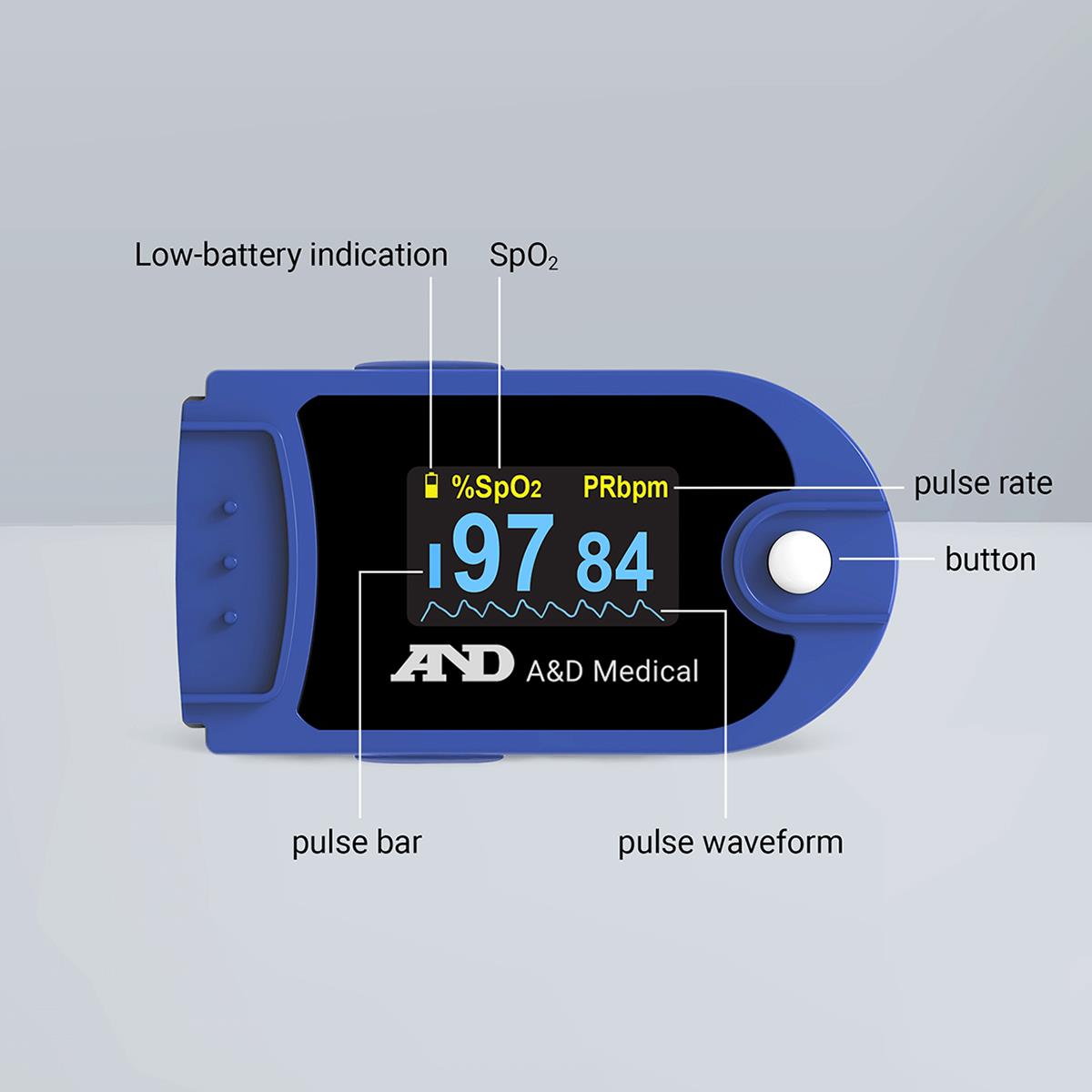

Operation is straightforward. Insert a finger into the spring-loaded finger clip and use the single control button to activate the device. The results are displayed on the LCD, allowing users to see oxygen saturation and pulse rate readings without complicated setup or configuration.

The specified SpO2 measurement range is 0-100%, with accuracy of ±2% from 70-100%. Accuracy below 70% is unspecified. Pulse rate can be measured from 30-250 beats per minute, with stated accuracy of ±2 bpm. SpO2 readings are displayed in 1% increments, while pulse rate is displayed in 1 bpm increments.

The UP-200 is powered by two AAA alkaline batteries and incorporates a power-saving function. Battery life is specified at approximately 30 hours under the stated operating conditions. The compact design makes it suitable for keeping at home or carrying when travelling.

The UP-200 is described as a device for checking oxygen saturation and pulse rate and should be used according to its instructions. Pulse oximeter readings can be affected by factors such as movement, circulation, skin characteristics, sensor positioning and environmental conditions.

Product Benefits

• Quick, non-invasive fingertip measurement of SpO2 and pulse rate.
• Simple one-button operation with an easy-to-read digital display.
• Lightweight portable design with batteries, carrying case and lanyards included.

Features & Specifications

• Brand: A&D Medical
• Model: UP-200
• Product type: Fingertip pulse oximeter
• Colour: Blue
• Measurements: SpO2 and pulse rate
• SpO2 measurement range: 0-100%
• SpO2 accuracy: ±2% from 70-100%; below 70% unspecified
• SpO2 resolution: 1%
• Pulse rate range: 30-250 bpm
• Pulse rate accuracy: ±2 bpm
• Pulse rate resolution: 1 bpm
• Display: Digital LCD
• Operation: One button
• Sensor type: Optical red and infrared sensor
• Red light wavelength: 660 nm
• Infrared wavelength: 905 nm
• Power: 2 × 1.5 V AAA alkaline batteries
• Battery life: Approximately 30 hours
• Power consumption: Less than 25 mA
• Operating temperature: 10°C-40°C
• Operating relative humidity: ≤75%
• Operating atmospheric pressure: 700-1060 hPa
• Storage temperature: -40°C to +60°C
• Storage relative humidity: ≤95%
• Storage atmospheric pressure: 500-1060 hPa

Measurements

• SpO2 range: 0-100%
• SpO2 accuracy: ±2% at 70-100%
• Pulse rate range: 30-250 bpm
• Pulse rate accuracy: ±2 bpm
• SpO2 resolution: 1%
• Pulse resolution: 1 bpm
• Measurement location: Fingertip

Materials & Care Instructions

• Housing: Compact plastic finger-clip construction.
• Keep the sensor and device clean and dry.
• Wipe the external surfaces with an appropriate soft cloth according to the user manual.
• Do not immerse the pulse oximeter in water or expose the electronic components to excessive moisture.
• Keep the optical sensor free from dirt and debris to help maintain reliable readings.
• Store the device in its carrying case when not in use.
• Remove the batteries if the device will be stored for an extended period, where appropriate.

Included Components

• 1 × A&D Medical UP-200 Pulse Oximeter
• 1 × User manual
• 1 × Carrying case
• 2 × Lanyards
• 2 × AAA alkaline batteries
