Beurer Mobile ECG Device 1-Channel Heart Rhythm Monitor 30-Second Recording Arrhythmia Detection Bluetooth & USB

Description

Beurer Mobile ECG Device 1-Channel Heart Rhythm Monitor 30-Second Recording Arrhythmia Detection Bluetooth & USB

• Single-channel ECG monitoring: Records a one-channel electrocardiogram for at-home or on-the-go monitoring of heart rhythm.
• 30-second ECG recording: Produces a short ECG recording using hand-to-hand, hand-to-chest or other supported body-contact measurement positions.
• Arrhythmia indication: Automatically evaluates the recorded rhythm and provides an immediate indication of detected rhythm abnormalities such as irregular, fast or slow heart rate.
• Data transfer: Measurements can be transferred via Bluetooth to a compatible smartphone or via USB to a computer for viewing and further evaluation.
• Compact medical device: Lightweight 42g design with one-button operation and an easy-to-read LCD display for convenient self-measurement.

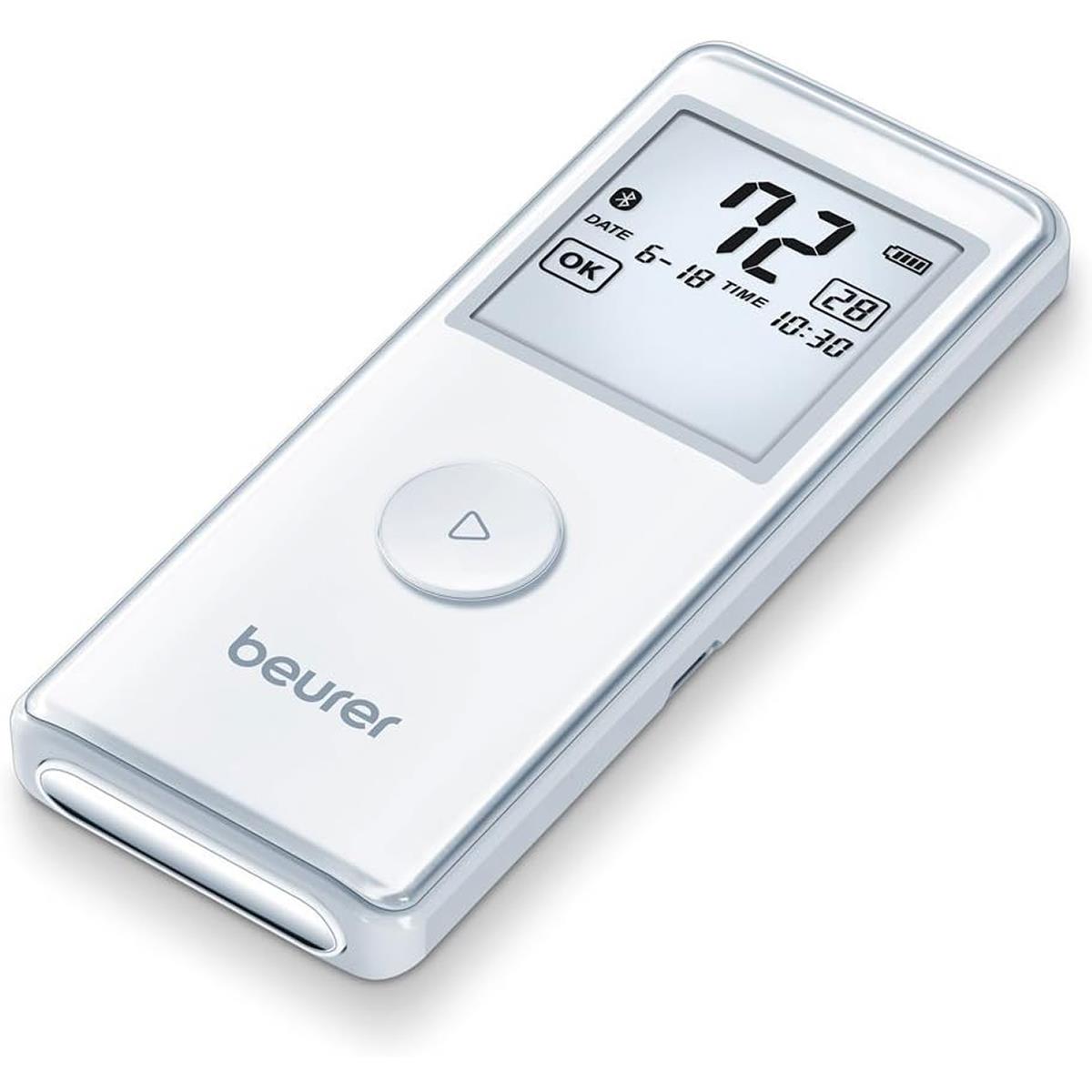

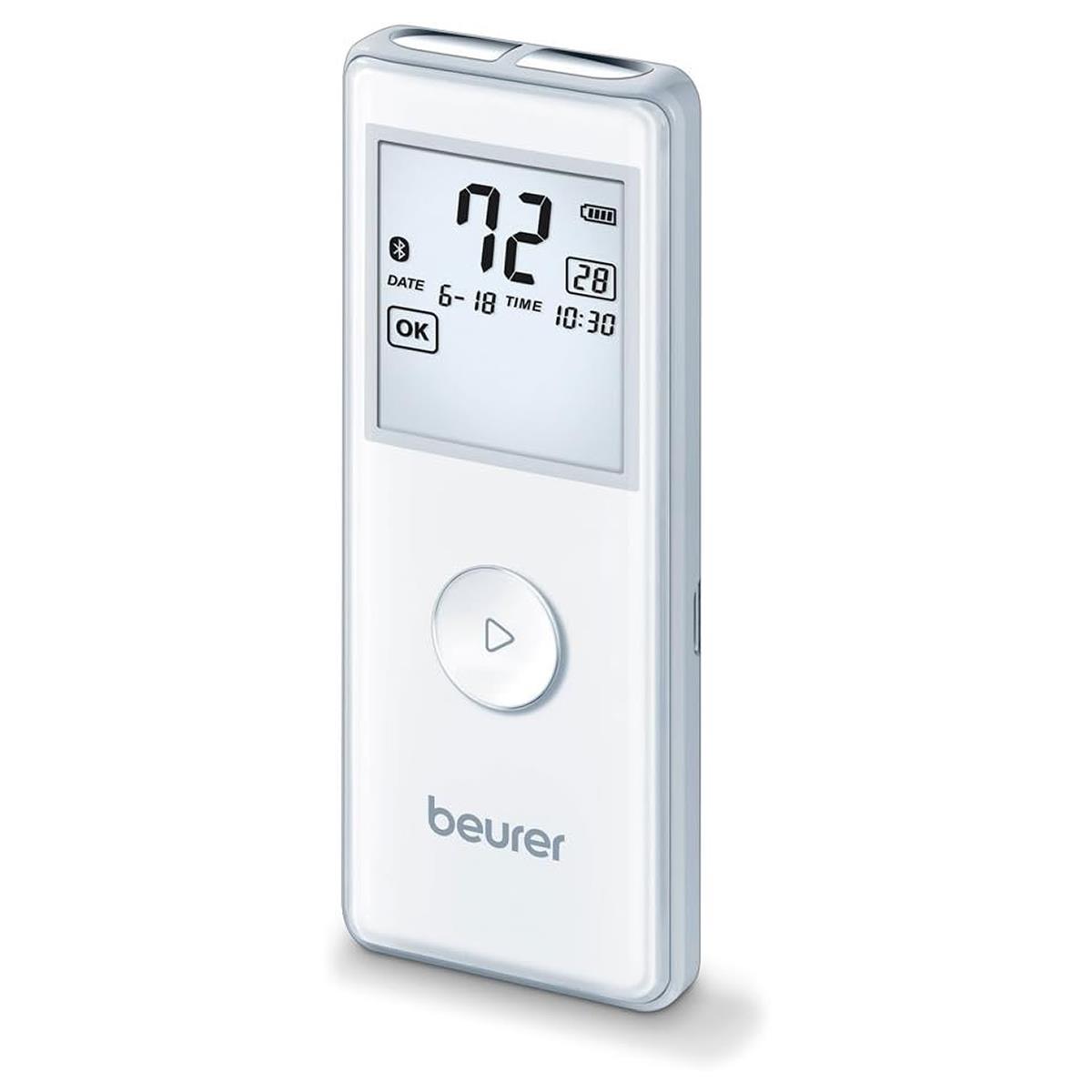

The Beurer ME90 Mobile ECG Device is a compact single-channel electrocardiogram monitor designed for recording and reviewing heart rhythm measurements at home or while travelling. It enables users to make a short ECG recording when required and provides an immediate basic assessment of the recorded heart rhythm.

The ME90 records a 30-second ECG using supported contact positions involving the hands, arms, chest and upper body. Its single-channel ECG system captures the electrical activity of the heart and presents the resulting information for subsequent review.

Following the measurement, the device provides an immediate indication of the recorded heart rhythm. Its evaluation function can identify whether the recorded rhythm appears normal or whether characteristics such as a heart rate that is too fast, too slow, irregular or associated with pauses have been detected. These results are intended as an aid to monitoring and should not be interpreted as a standalone medical diagnosis.

The ME90 provides 36 internal memory spaces for ECG measurements. Recorded measurements can be transferred to a compatible computer via USB and, depending on the applicable software and device configuration, transferred wirelessly via Bluetooth to a compatible smartphone. The associated software/app environment allows ECG recordings to be displayed graphically and shared with a healthcare professional when appropriate.

The device has a compact handheld design measuring approximately 95.5 × 38 × 9mm and weighs approximately 42g including batteries. A straightforward one-button operating concept and LCD display make it suitable for users who want a portable method of recording their heart rhythm.

The ME90 is a medical device intended for self-measurement by adults. It can be particularly useful for people who have been advised by a healthcare professional to monitor their heart rhythm. It should not be used to replace professional diagnosis, treatment or emergency medical assessment. If symptoms such as severe chest pain, significant breathing difficulty, fainting or other potentially serious symptoms occur, appropriate medical assistance should be sought rather than relying on an ECG-device reading.

Product Benefits

• Enables convenient 30-second single-channel ECG recordings at home or away.
• Provides immediate basic information about the recorded heart rhythm and possible rhythm irregularities.
• Stores ECG results and supports data transfer for longer-term monitoring and discussion with a healthcare professional.

Features & Specifications

• Brand: Beurer
• Product type: Mobile ECG device
• ECG type: Single-channel
• Measurement duration: 30 seconds
• Measurement method: Body-contact ECG
• Supported measurement positions: Hand-arm-hand and hand/arm-upper-body-arm/hand configurations as specified in the instructions
• Heart-rate measurement range: 5–199 beats per minute
• ECG bandwidth: 0.05–40Hz
• Sampling rate: 256Hz
• Memory capacity: 36 measurements
• Rhythm assessment: Basic automatic ECG evaluation
• Arrhythmia indication: Yes

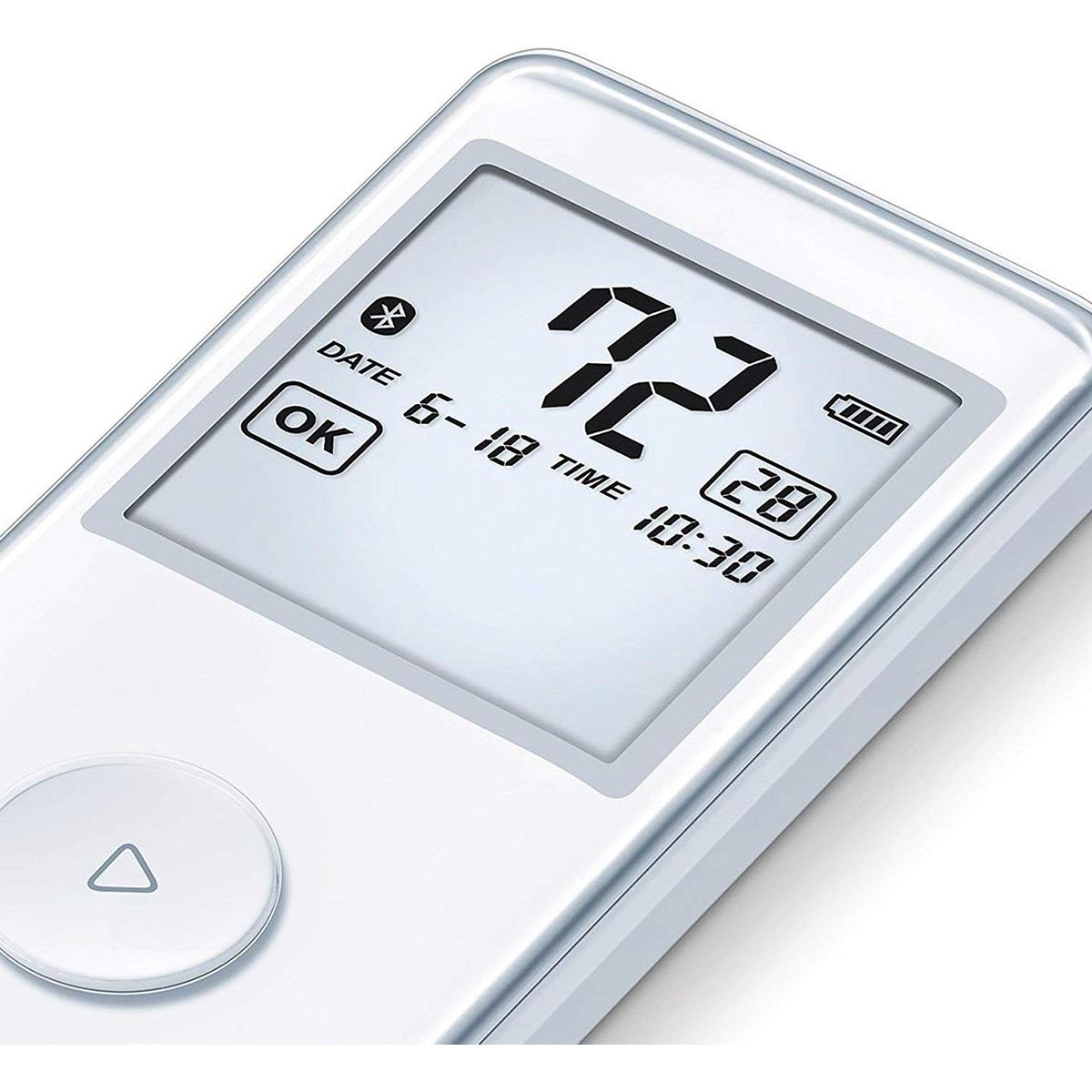

• Display: LCD
• Operation: One-button operation
• Connectivity: Bluetooth and USB
• Compatible devices: Compatible smartphones and computers
• Power supply: CR2032 button-cell batteries
• Battery configuration: Product documentation identifies 2 × 3V CR2032 batteries for the ME90
• Material: Polycarbonate (PC)
• Colour: White

Measurements

• Device dimensions: 95.5 × 38 × 9mm (L × W × H)
• ECG recording duration: 30 seconds
• Heart-rate measurement range: 5–199 bpm
• Memory: 36 ECG measurements
• User suitability: Adults

Materials & Care Instructions

• Housing material: Polycarbonate (PC).
• Keep the device clean and dry.
• Wipe the exterior with a soft, dry or slightly damp cloth as appropriate.
• Do not immerse the ECG device in water or expose it to excessive moisture.

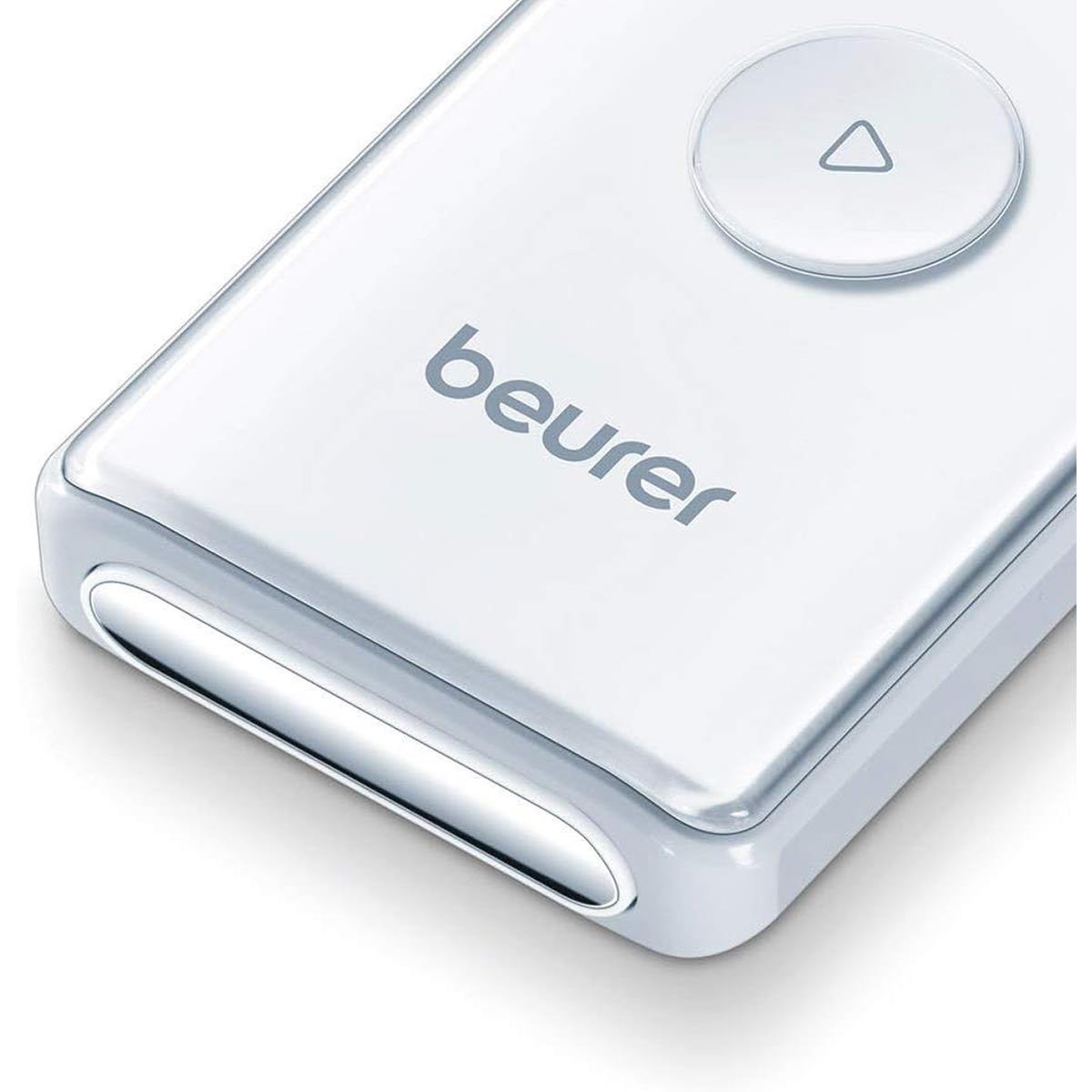

• Keep the electrical contacts clean and free from oils, lotions and other residues before measurement.
• Store the device in a dry location away from excessive heat, humidity and direct sunlight.
• Remove or replace batteries according to the operating instructions when the battery becomes depleted.
• Follow the supplied instructions carefully for correct electrode placement and measurement technique.

Included Components

• 1 × Beurer ME90 Mobile ECG Device
• 2 × CR2032 button batteries
• 1 × USB cable
• 1 × Instructions for use
