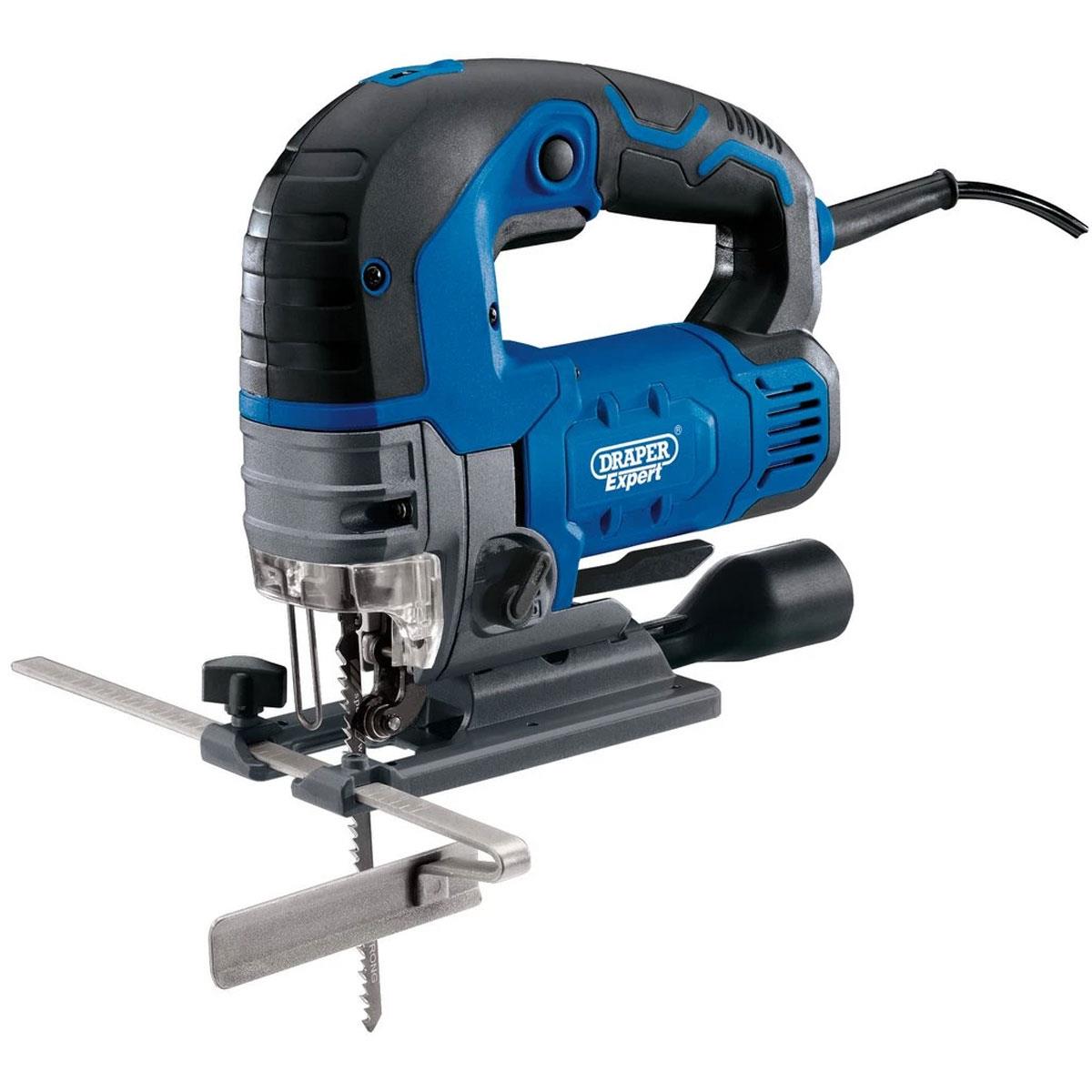

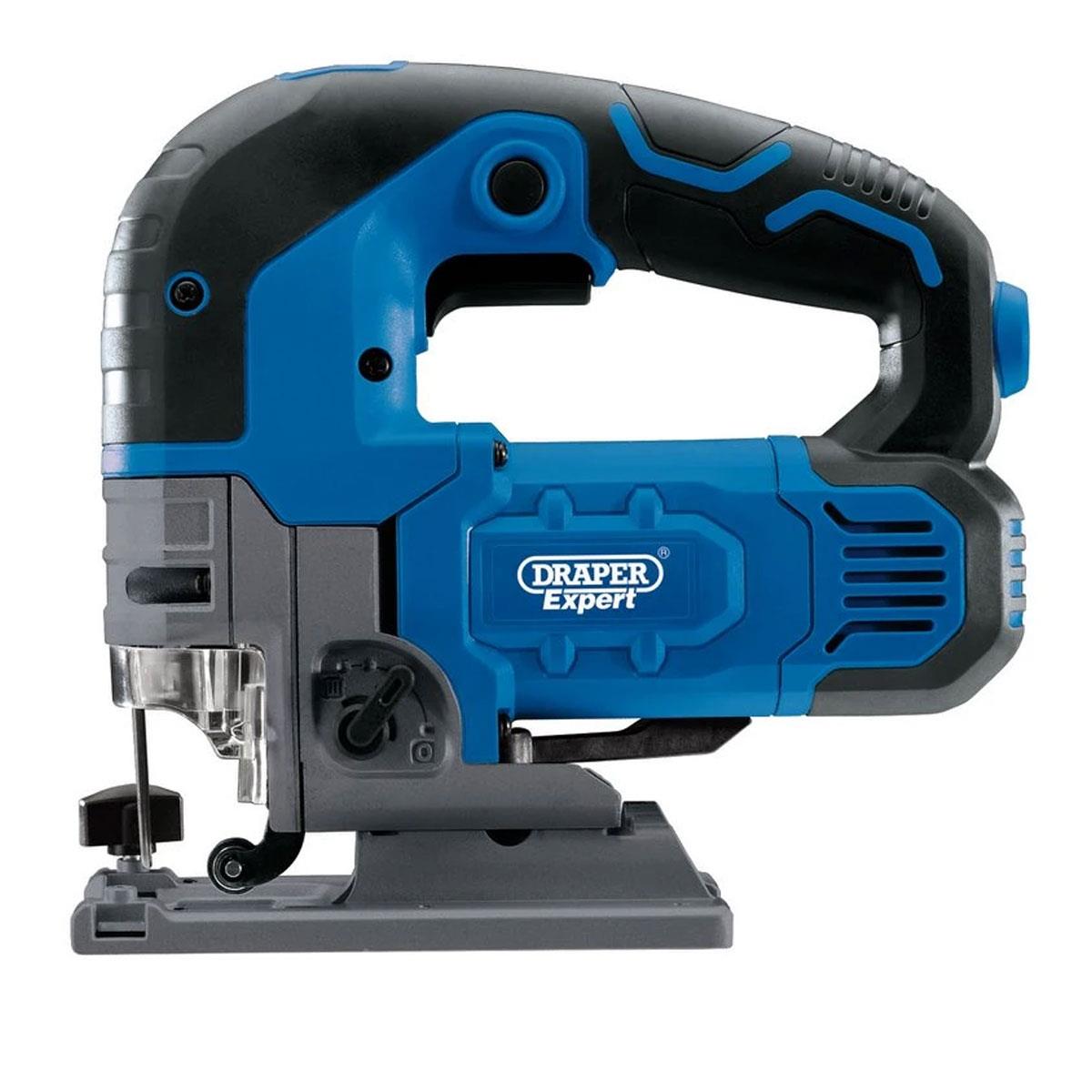

Draper 750W Orbital Jigsaw 230V Variable Speed 26mm Stroke 120mm Wood Cut 10mm Metal Cut

Description

Draper 750W Orbital Jigsaw 230V Variable Speed 26mm Stroke 120mm Wood Cut 10mm Metal Cut

• 750W corded motor: Delivers up to 3,000rpm no-load speed for controlled cutting performance in wood and metal.
• 26mm stroke length: Designed for efficient material removal and fast cutting, with a maximum wood cutting depth of 120mm and metal cutting depth of 10mm.
• Variable speed and pendulum action: Allows cutting performance to be adjusted to suit different materials and applications.
• Practical workshop features: Includes quick blade change, dust extraction facility, aluminium base, parallel guide and a 2m cable with BS plug.

The Draper 750W Orbital Jigsaw is a corded electric jigsaw designed for accurate and efficient cutting across a range of woodworking and metalworking applications. Its 750W motor provides a variable no-load speed of 0–3000rpm, giving users the flexibility to adjust cutting performance according to the material and task.

With a 26mm stroke length, the jigsaw provides a substantial cutting action for efficient material removal. It has a maximum cutting capacity of 120mm in wood and 10mm in metal, making it suitable for a broad range of workshop, construction, maintenance and DIY cutting tasks.

The pendulum action can improve cutting efficiency, while variable speed control helps provide greater control when working with different materials or when making more precise cuts. A quick blade change facility simplifies blade replacement, reducing downtime between applications.

The jigsaw incorporates an aluminium base for a durable cutting platform and includes a dust extraction facility to help connect the tool to a suitable extraction system. A parallel guide is supplied to assist with controlled straight cuts, while the 2m power cable with BS plug provides practical reach for mains-powered operation.

The Draper is supplied as a complete corded jigsaw package with a wood-cutting blade, parallel guide and dust extraction components. The specification states that the tool is supplied in a case, making it suitable for storage and transportation between work areas.

Product Benefits

• 750W motor and variable speed control provide versatile cutting performance.
• 120mm maximum wood cutting capacity and 10mm metal capacity support a wide range of applications.
• Quick blade change, pendulum action, dust extraction and parallel guide improve ease of use and cutting control.

Features & Specifications

• Brand: Draper
• Product Type: Corded orbital jigsaw
• Power: 750W
• Voltage: 230V
• Power Source: Corded electric / mains
• No-load speed: 0–3000rpm
• Stroke length: 26mm
• Maximum wood cutting capacity: 120mm
• Maximum metal cutting capacity: 10mm
• Bevel cutting: 0–45°
• Speed control: Variable
• Blade change: Quick blade change facility
• Cutting action: Pendulum action
• Base: Aluminium
• Dust extraction: Yes
• Cable: 2m with BS plug
• Tool weight: 3kg
• Case supplied: Yes

Measurements

• Tool dimensions: Approximately 390mm high × 378mm long × 138mm wide.
• Maximum cutting depth: Wood 120mm; metal 10mm.
• Stroke length: 26mm.
• Bevel range: 0–45°.
• Intended users: Suitable for DIY users, workshops, tradespeople and general maintenance applications.

Materials & Care Instructions

• Base: Aluminium.
• Handle / tool construction: Durable metal and engineered power-tool components
• Blade: Supplied wood-cutting blade; replacement blade selection should match the material and jigsaw blade fitting.
• Care: Disconnect from mains power before cleaning, changing blades or carrying out maintenance. Remove accumulated sawdust and debris from ventilation and extraction areas. Keep the tool dry and store it in its case when not in use. Inspect the cable, blade and fittings before operation.

Included Components

• 1 × Draper 750W 230V orbital jigsaw
• 1 × Wood-cutting jigsaw blade
• 1 × Parallel / guide rule
• 1 × Dust extraction adaptor
• 1 × Carrying case
• 1 × 2m power cable with BS plug
