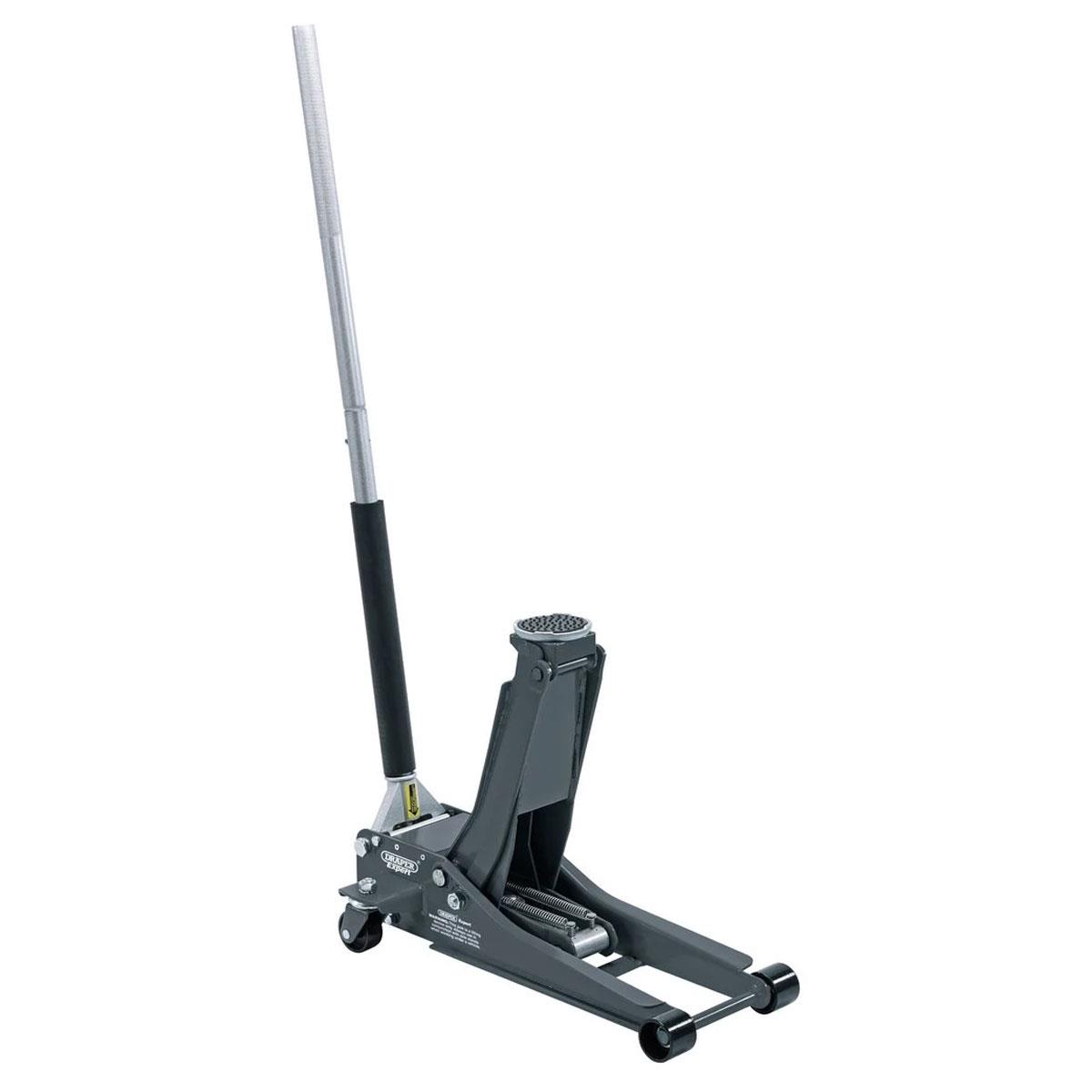

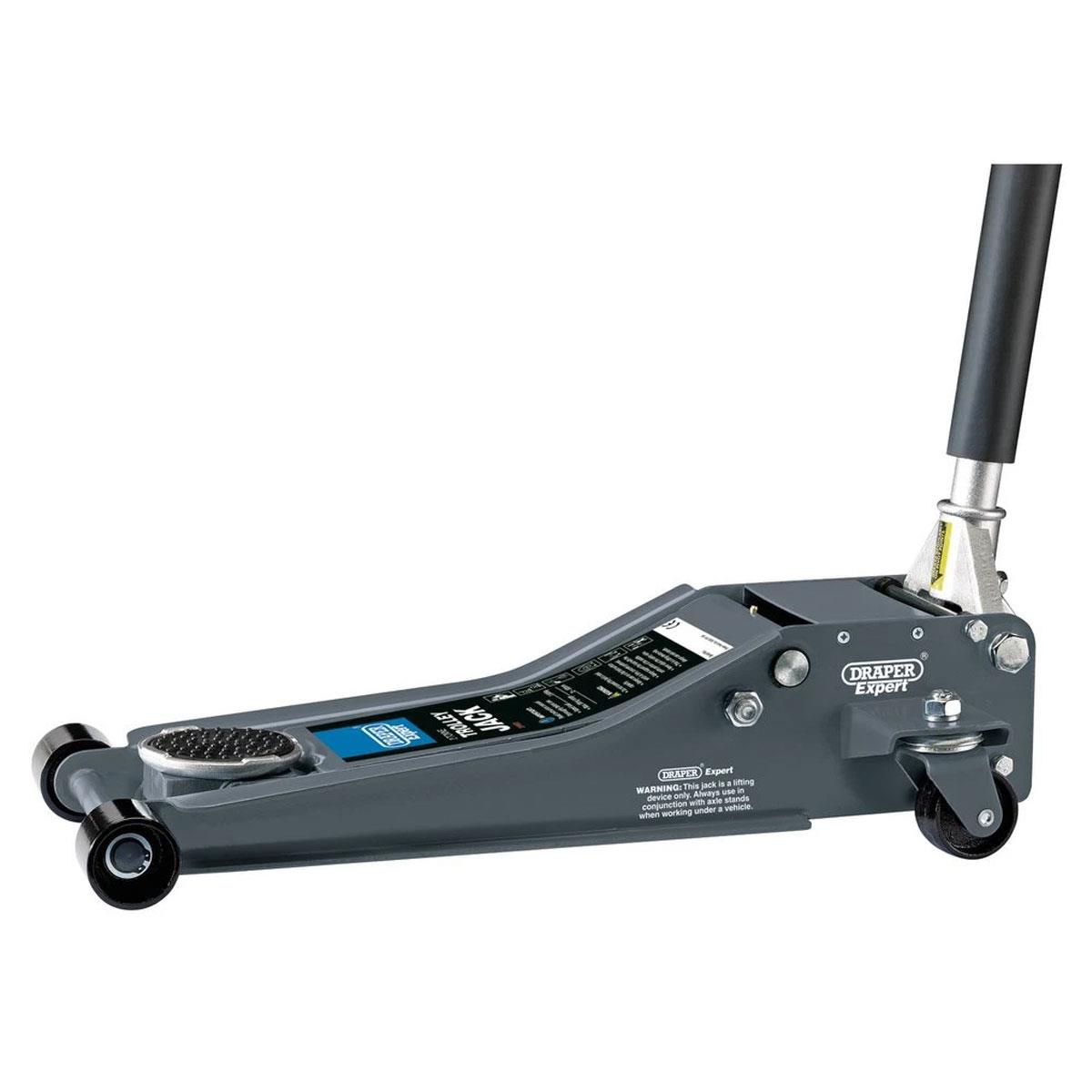

Draper Expert Professional Low Profile Trolley Jack 2 Tonne 72-500mm Twin Piston Pump

Description

Draper Expert Professional Low Profile Trolley Jack 2 Tonne 72-500mm Twin Piston Pump

• Heavy-duty 2-tonne low-profile trolley jack with robust chassis and twin piston pump
• 72mm minimum lifting height provides access to vehicles with reduced ground clearance
• Lifts vehicles up to 500mm with seven full pumps for rapid elevation
• Rubber saddle pad, EVA foam handle cover and overload safety valve help protect the vehicle and user

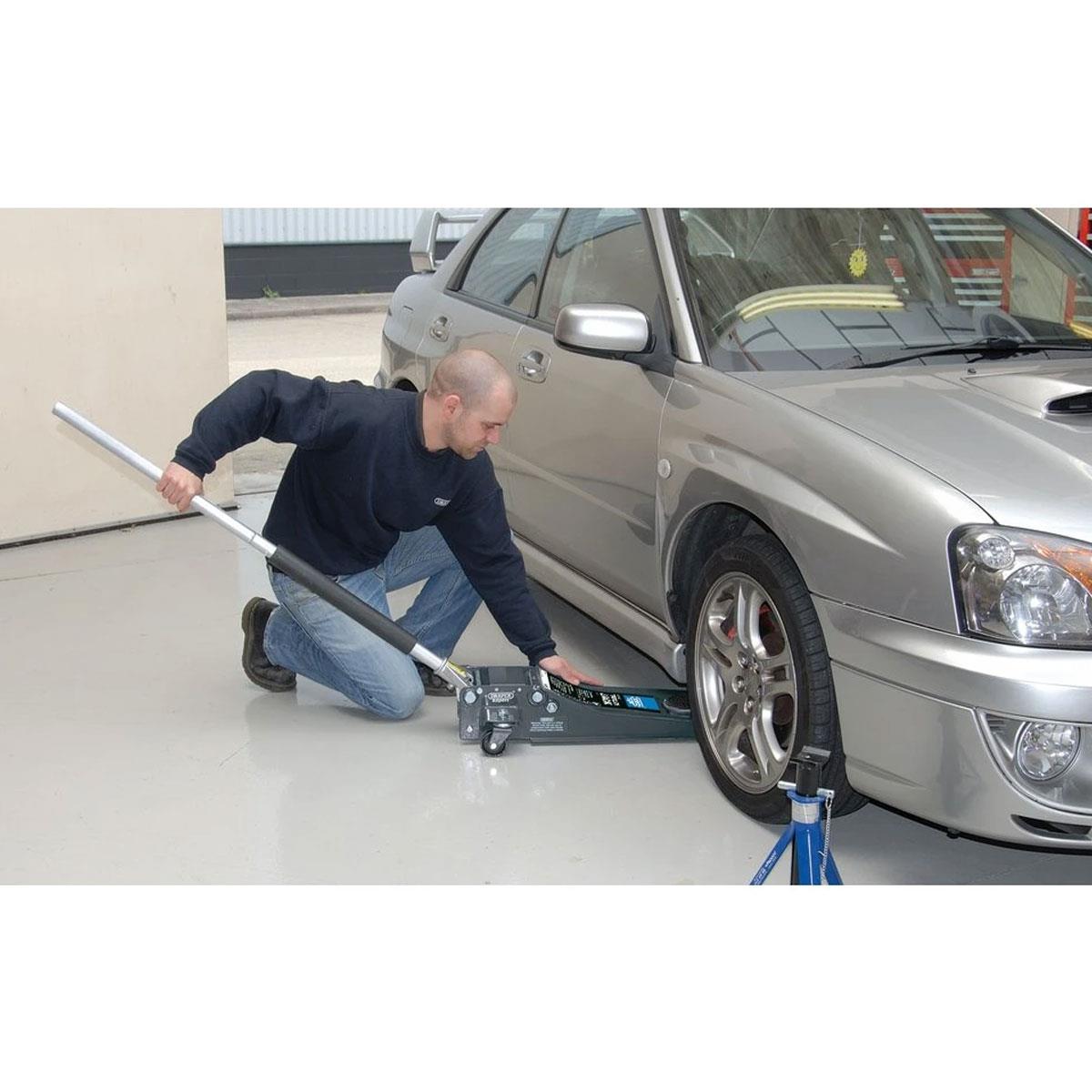

The Draper Expert Professional Low Profile Garage Trolley Jack is a heavy-duty 2-tonne hydraulic jack designed for vehicle maintenance where low entry clearance is required. With a minimum lifting height of just 72mm, the low-profile chassis provides improved access beneath vehicles with reduced ground clearance.

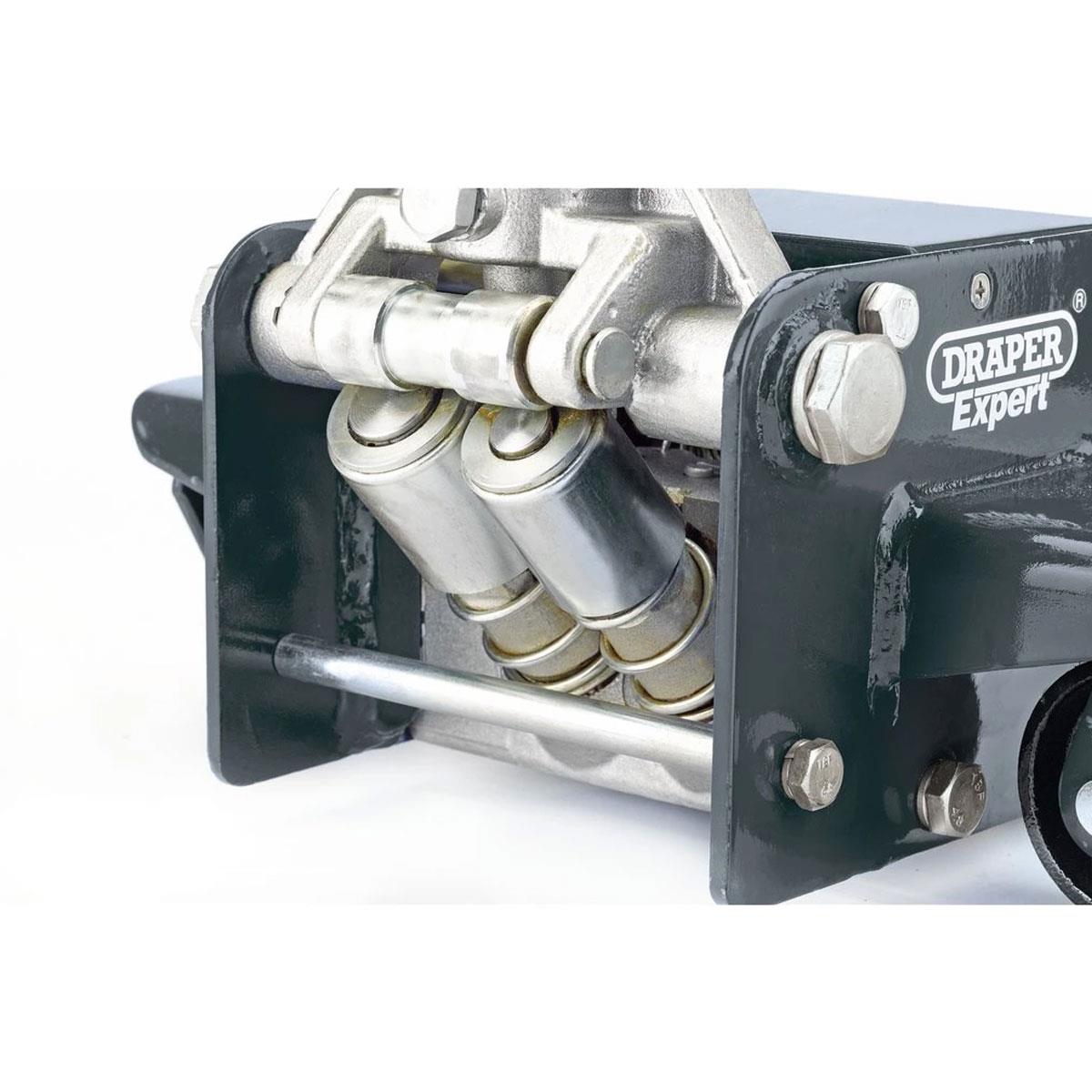

A powerful twin piston pump enables a fast lifting action, reaching the maximum 500mm lifting height in seven full pumps. The 110mm saddle provides a stable contact point beneath the vehicle, while the integrated rubber saddle pad helps protect the underside from damage during lifting.

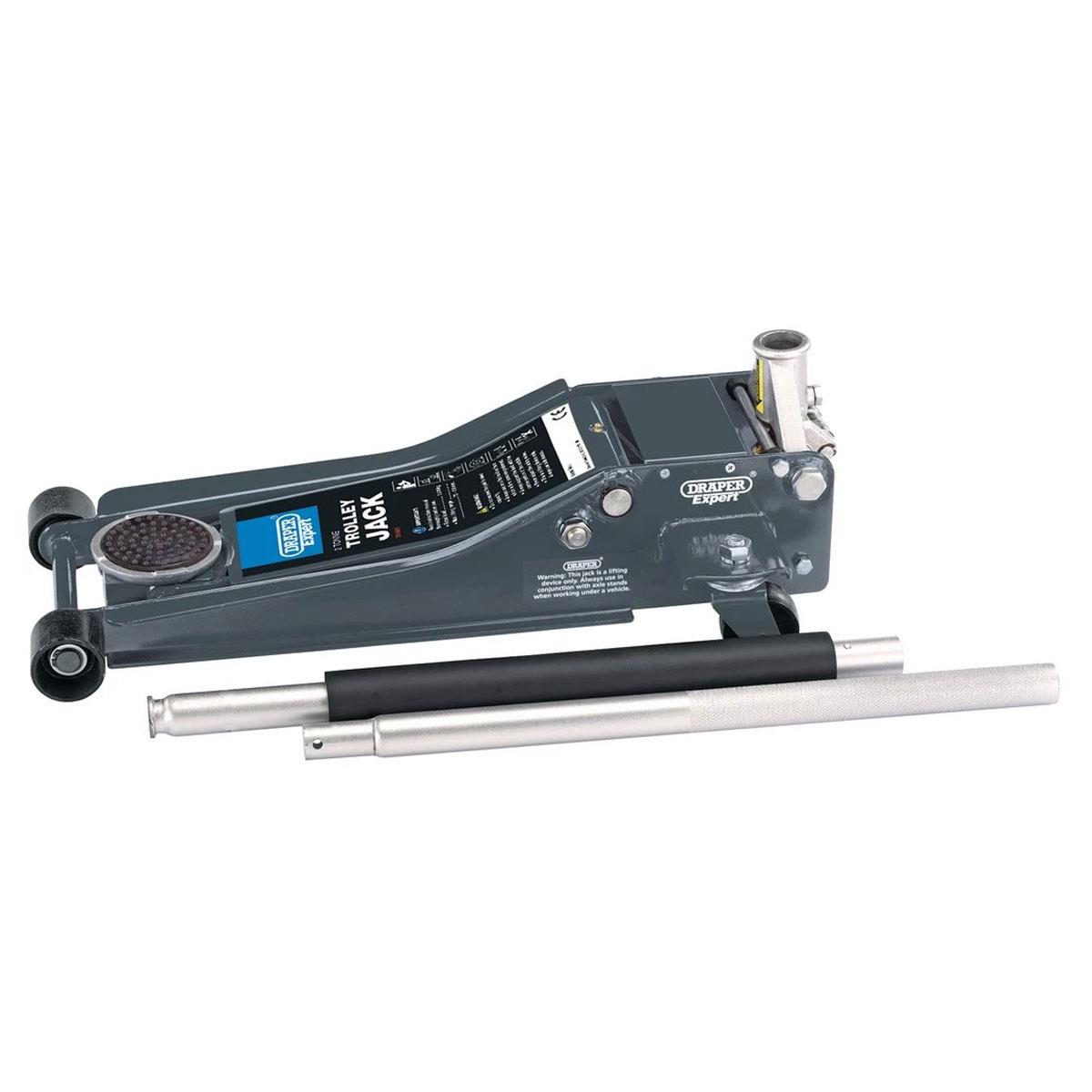

The two-piece handle measures 1,150mm in length and features a knurled grip to help prevent hand slippage during operation. An EVA foam handle cover provides additional protection against accidental contact with vehicle bodywork.

For safe operation, the trolley jack incorporates a safety valve designed to prevent overloading. Rear swivelling castors improve manoeuvrability around the workshop or garage. Manufactured to EN1494 specification, this professional trolley jack is suitable for vehicle servicing, repair and maintenance applications.

Product Benefits

• Low 72mm entry height allows access beneath low-clearance vehicles
• Twin piston pump provides fast and efficient lifting
• Protective saddle and handle features help minimise vehicle damage

Features & Specifications

• Brand: Draper
• Product Type: Low Profile Garage Trolley Jack
• Capacity: 2 Tonne
• Minimum Height: 72mm
• Maximum Height: 500mm
• Lifting Range: 72-500mm
• Pump Type: Twin piston
• Pumps to Maximum Height: 7 full pumps
• Saddle Diameter: 110mm
• Handle Length: 1,150mm
• Chassis Length: 680mm
• Safety Valve: Yes
• Rear Castors: Swivelling
• Saddle Pad: Integrated rubber
• Handle Cover: EVA foam
• Standard: EN1494
• Net Weight: 32kg

Measurements

• Minimum lifting height: 72mm
• Maximum lifting height: 500mm
• Saddle diameter: 110mm
• Handle length: 1,150mm
• Chassis length: 680mm
• Net product weight: 32kg
• Age group suitability: Adult

Materials & Care Instructions

• Chassis: Heavy-duty steel construction
• Saddle pad: Rubber
• Handle cover: EVA foam
• Keep the jack clean and free from oil, grease and debris
• Inspect the jack, saddle and hydraulic components before use
• Store on a clean, dry and level surface
• Do not exceed the 2-tonne rated capacity
• Use only on suitable stable surfaces and follow safe lifting procedures

Included Components

• 1 x Draper Expert Professional Low Profile Garage Trolley Jack, 2 Tonne
• 1 x Two-Piece Handle
