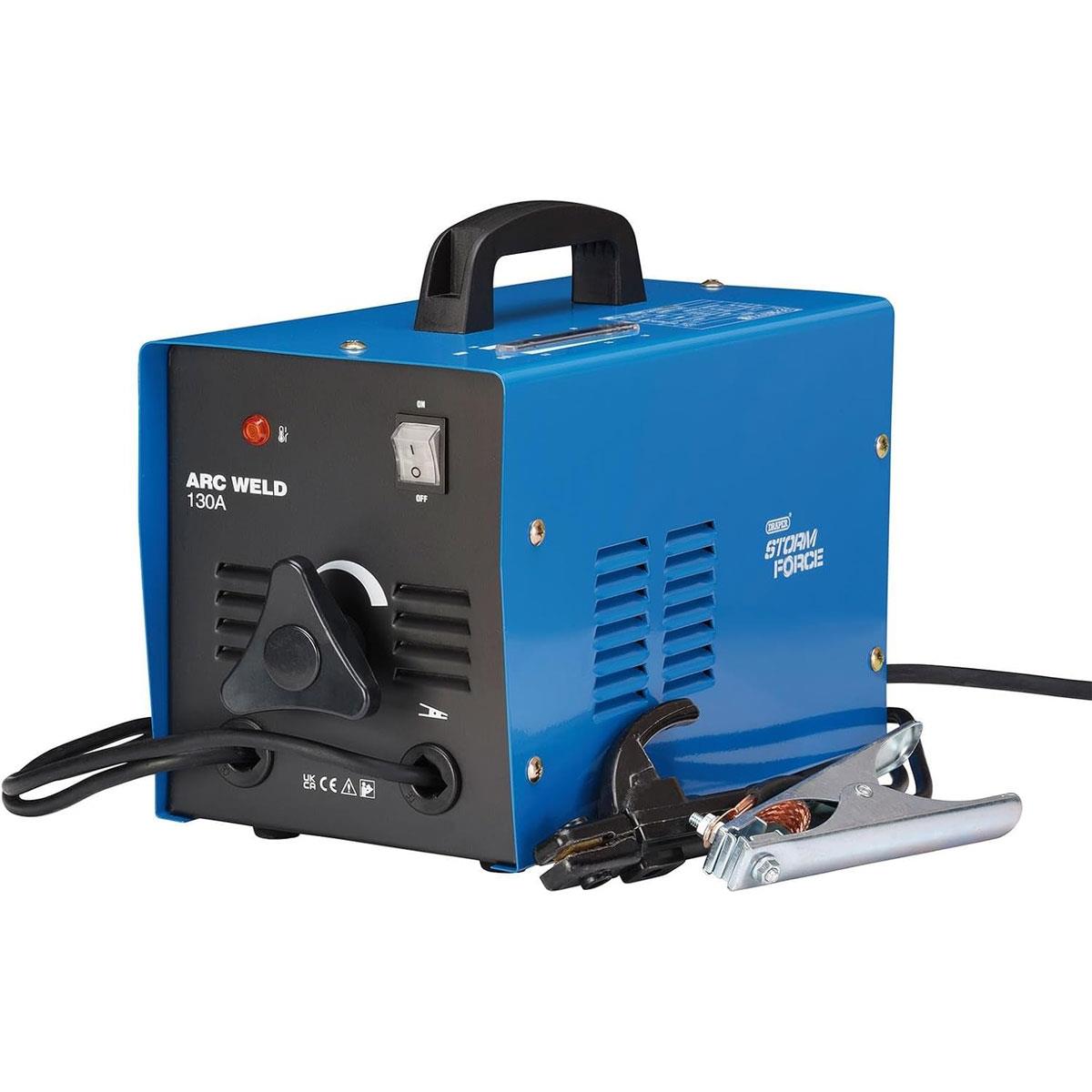

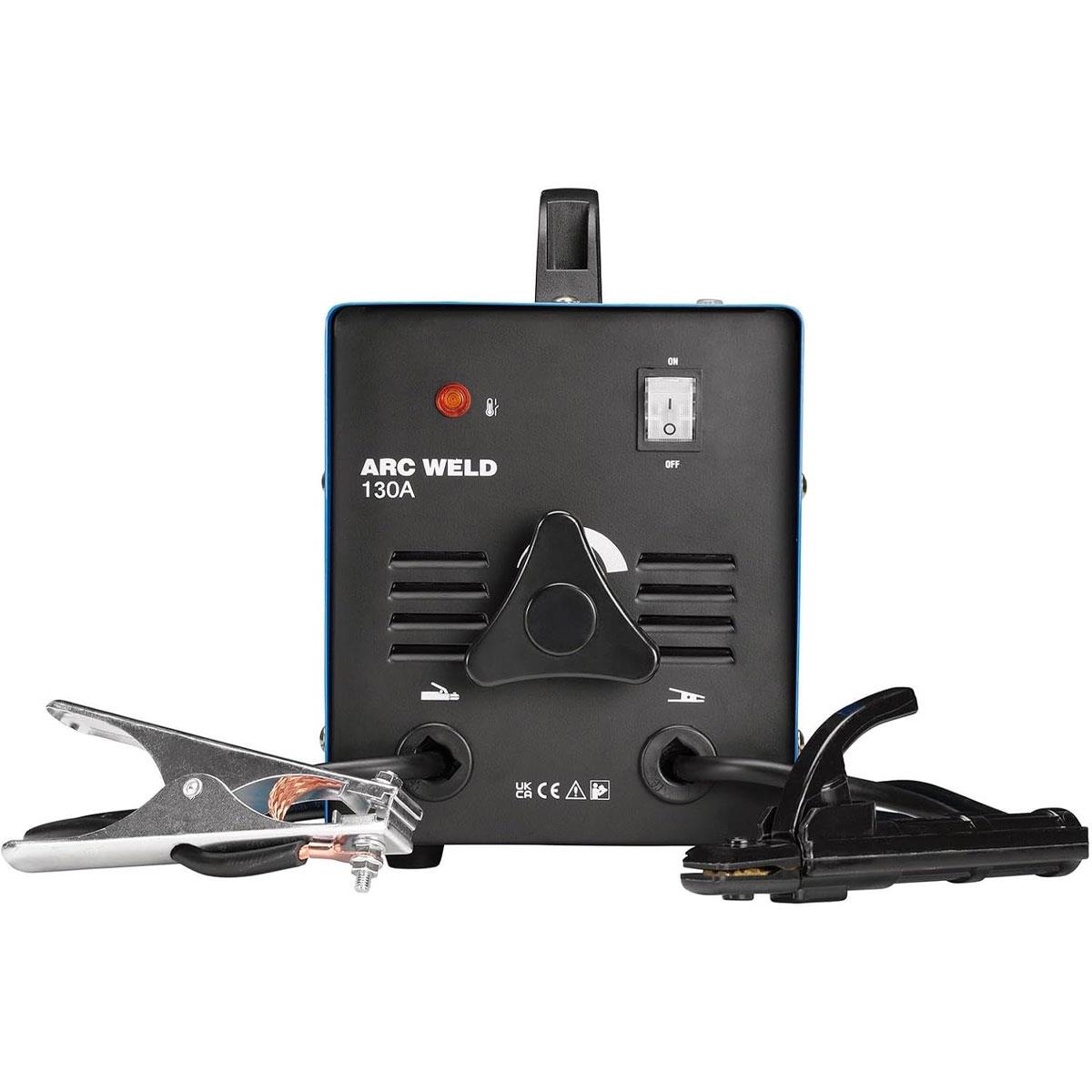

Draper Turbo Arc Welder 130A 230V Stepless Current Control Thermal Overload Protection 2.0-3.2mm Electrodes

Description

Draper Turbo Arc Welder 130A 230V Stepless Current Control Thermal Overload Protection 2.0-3.2mm Electrodes

• Robust metal construction with thermal overload protection for dependable ARC welding operation.
• 130A variable welding output with stepless current adjustment and compatibility with 2.0-3.2mm electrodes.
• 230V single-phase mains power with a 16A supply requirement; supplied without a fitted plug.
• Fan-cooled, portable design with carry handle, suitable for DIY, maintenance, repair and light fabrication work

The Draper Turbo Arc Welder is a mains-powered ARC welding machine designed for welding, repair and light fabrication applications. With a 50-130A output range and stepless current adjustment, the welder allows the operator to fine-tune welding current to the electrode and application. It accepts electrodes from 2.0mm to 3.2mm, making it suitable for a range of general-purpose ARC welding tasks.

The welder incorporates thermal overload protection and fan cooling to help manage operating temperatures during use. Its robust construction and integrated carry handle make it practical for workshop, garage and mobile maintenance applications.

The Draper operates from a 230V AC single-phase supply and requires a 16A connection. The current product specification states that no plug is fitted, so an appropriate 16A plug must be installed by a qualified electrician before use. This is a Class 1 machine and requires a properly earthed electrical supply.

The stated duty cycle is 10% at 130A, 40% at 65A and 60% at 53A, providing useful guidance for managing welding periods at different output levels.

The accessory set includes an electrode holder, earth clamp, chipping hammer/wire brush and face mask, providing the essential accessories supplied with the machine.

Product Benefits

• Stepless current control enables more precise adjustment for different welding requirements.
• Thermal overload protection and fan cooling help protect the machine during operation.
• Supplied with essential welding accessories for a practical ARC welding setup.

Features & Specifications

• Brand: Draper
• Welding process: ARC
• Output amperage range: 50-130A
• Maximum welding current: 130A
• Power supply: 230V AC, single phase
• Required supply: 16A
• Electrode size: 2.0-3.2mm
• Duty cycle: 10% 130A / 40% 65A / 60% 53A
• Cooling: Fan cooled
• Current adjustment: Stepless
• Thermal overload protection: Yes
• Carry handle: Yes
• Plug: Not fitted; 16A plug required

Measurements

• Current machine dimensions: 430 x 230 x 300mm (L x W x H).
• User-supplied dimensions: 470 x 270 x 230mm
• Suitable for adult DIY users and tradespeople; not a children’s product.
• General-purpose ARC welding equipment for metal repair, maintenance and light fabrication.

Materials & Care Instructions

• Main construction: robust metal housing.
• Keep the welder clean, dry and adequately ventilated during operation.
• Allow the machine to cool and disconnect it from the electrical supply before adjustment, servicing or maintenance.
• Inspect cables, connections and accessories before use and do not operate the machine if electrical insulation or connections are damaged.
• Use only in safety instructions and appropriate welding PPE.
• The supplied face mask should be used,additional suitable welding protection may be required depending on the application.

Included Components

• 1 x Draper 130A ARC Welder
• 1 x 200A electrode holder with approximately 1.6m cable
• 1 x 200A earth clamp with approximately 1.3m cable
• 1 x Chipping hammer/wire brush
• 1 x Face mask
